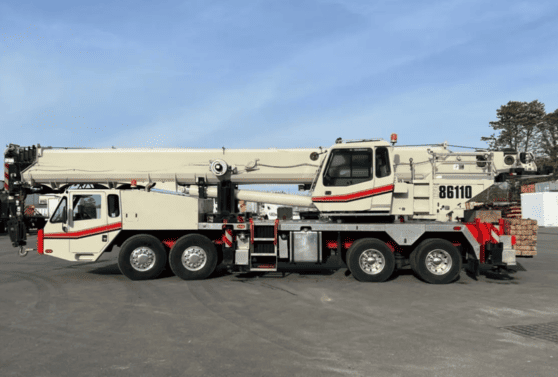

HTC-86110
The Link-Belt HTC-86110 represents PJB’s premium solution for contractors demanding heavy lifting capacity and extreme reach in a road-ready package. As the most capable model in PJB’s HTC series, this 110 U.S. ton hydraulic truck crane combines a 164-foot greaseless boom, three-piece offsettable fly, and 262-foot max tip height to tackle complex industrial, energy, and infrastructure projects. PJB operators benefit from its class-leading 20,739 lb line pull, 495 fpm line speed, and advanced Link-Belt Pulse operating system – all designed to maximize productivity while meeting stringent transport regulations. Whether working in congested urban sites or remote locations, the HTC-86110 delivers the perfect balance of power, precision, and mobility that PJB customers rely on.
Link-Belt HTC-86110 110-Ton Hydraulic Truck Crane
- ECapacity: 110 USt @ 7 ft (100 metric tons)
- EMax Tip Height: 262 ft (79.7 m) with extensions
- EBoom: 38.3-164.1 ft (6-section greaseless pin & latch)
- EFly Options: 10-35-58 ft three-piece bi-fold lattice attachment (0°/15°/30°/45° offsets) Optional two 16 ft lattice inserts (90 ft total length)
- EWinch Performance: 20,739 lbs (92.25 kN) max line pull 495 fpm (150.9 m/min) max line speed
- EEngine: Powerful on-highway compliant engine
- ETransport Weight: Configurable for road compliance
Why Contractors the HTC-86110
- Heavier lifts with greater line pull capacity
- Extended reach for complex job sites
- Advanced controls for precision operation
- Superior transportability for multi-site projects
